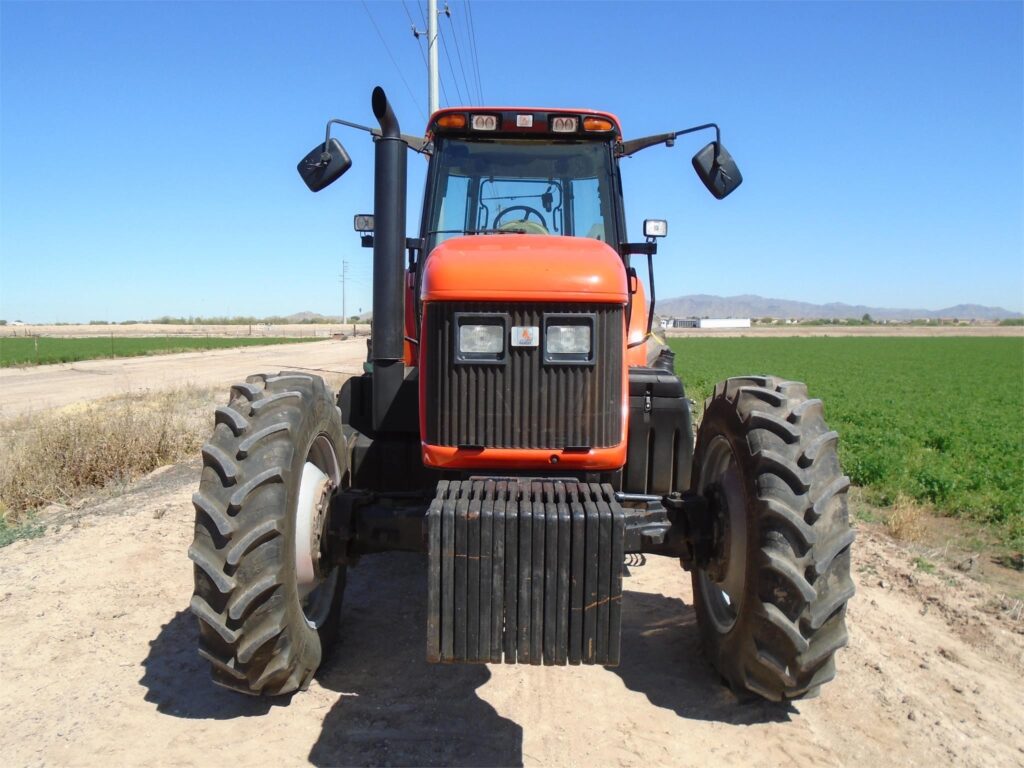

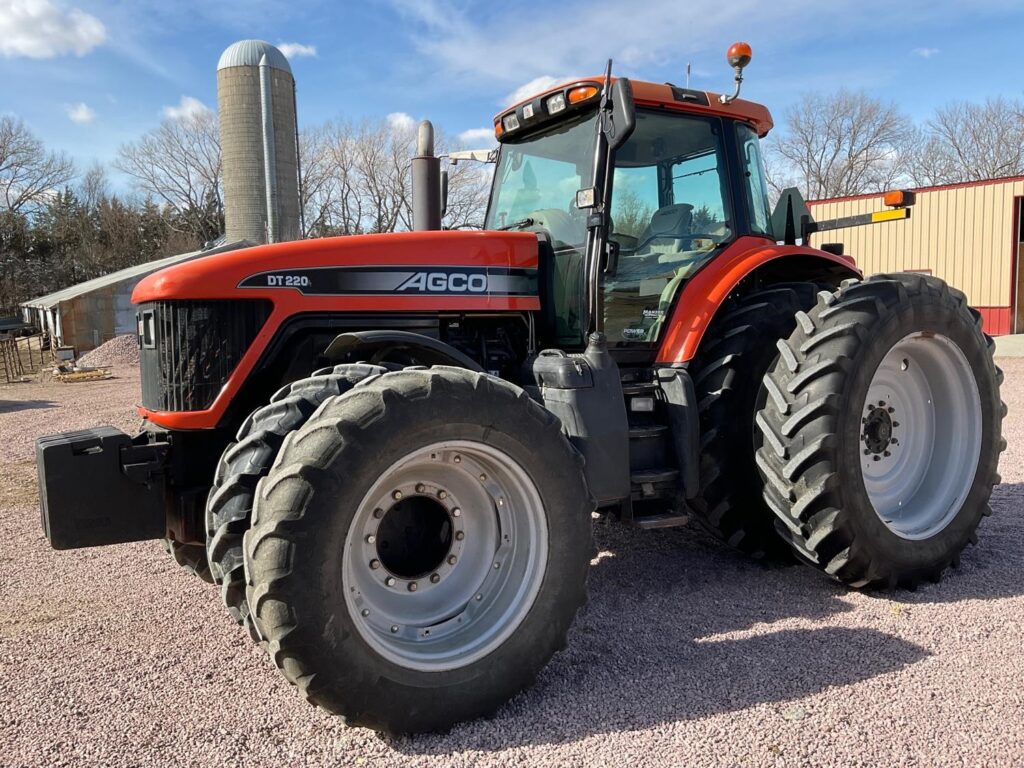

The AGCO DT220A tractor stands as a reliable powerhouse for modern agriculture. Sporting a robust engine and a CVT transmission, this model offers exceptional performance and versatility in various farming tasks.
With compatibility for advanced systems like Datatronics 3, Fieldstar, and Auto-Guide, the DT220A ensures that precision farming is within reach for every operator.
Offering between 175 and 299 HP, the AGCO DT220A excels in row-crop applications, making it a valuable asset on any large farm.
Its pneumatic suspension option and comfortable cab ensure that operators can work long hours without undue fatigue. Coupled with its regular maintenance and servicing needs, this tractor exemplifies reliability and efficiency.
For those considering an upgrade or a durable addition to their agricultural machinery, the AGCO DT220A checks all the boxes. Its practical design and advanced features deliver what today’s demanding farming environments require, ensuring producers can meet their operational goals efficiently.
History of the AGCO DT220A Model
The AGCO DT220A is part of the AGCO DT-A Series of row-crop tractors. Manufactured by AGCO, this model was produced from 2005 until 2008.
Production took place in a factory located in Beauvais, France. This tractor was designed to meet the rigorous demands of agricultural tasks.
The DT220A features a robust 8.4 L Sisu Diesel engine. This engines provides high power and efficiency, which is ideal for various farming applications.
Specifications:
- Engine Power: 260 HP (193.9 kW)
- Production Years: 2005-2008
- Factory Location: Beauvais, France
- Engine Type: 8.4 L Turbocharged Diesel
- Weight: 19,951 lbs (9049 kg)
The DT220A came standard with a cab, offering optional pneumatic suspension. This made it comfortable for operators during long hours of operation.
Dimensions:
- Length: 206 inches (523 cm)
- Height: 122 inches (309 cm)
- Wheelbase: 121 inches (307 cm)
The model demonstrated AGCO’s commitment to innovation and quality in agricultural machinery.
Origins of the AGCO Brand
AGCO, which stands for Allis-Gleaner Corporation, traces its origins back to 1990. The brand was established in Duluth, Georgia, USA.
The company was formed through the acquisition of Deutz-Allis assets from the German agricultural machinery manufacturer KHD (Klöckner-Humboldt-Deutz).
Key Acquisitions:
- In 1991, AGCO acquired Hesston Corporation, adding hay tools to its product lineup.
- Subsequently, AGCO acquired the White Tractor line from Allied Products in 1991.
- In 1993, AGCO took over Massey Ferguson, a brand with a strong global presence and a rich history.
Manufacturing and Global Expansion:
AGCO’s manufacturing footprint expanded globally over the years. With facilities across different continents, the company established itself as a major player in the agricultural equipment industry.
In France, the Beauvais factory is a significant site where some AGCO tractors, including the DT220A, have been produced.
AGCO’s evolution involved the development of various innovative technologies to improve agricultural productivity. The brand is known for integrating advanced features like pneumatic suspension, Datatronics 3, Fieldstar, and Auto-Guide systems into its machinery, reflecting its commitment to technological advancement.
With a diverse product range and a focus on quality, AGCO has become synonymous with reliability in the agricultural sector. The company’s dedication to continuous improvement and customer satisfaction remains at the core of its operations.
Engine Details
The AGCO DT220A is powered by a Sisu Diesel turbocharged intercooled engine.
This 6-cylinder, liquid-cooled engine has a displacement of 513 cubic inches (8.4 liters).
The bore and stroke measure 4.370 x 5.709 inches (111 x 145 mm).
It meets Tier II emission standards, ensuring a balance between performance and environmental compliance.
Engine Specifications
| Specification | Details |
|---|---|
| Engine Name | Sisu Diesel |
| Engine Type | Turbocharged intercooled diesel |
| Cylinders and Valves | 6-cylinder, liquid-cooled |
| Displacement | 513 ci / 8.4 L |
| Bore/Stroke | 4.370×5.709 inches / 111×145 mm |
| Power | 260 hp (193.9 kW) |
| Fuel Tank Capacity | 158.5 gallons (599.9 liters) |
| Fuel System | Direct injection |
| Air Cleaner | Two paper elements |
| Pre-Heating | Thermostart |
| Compression Ratio | Not specified |
| Rated RPM | 2200 RPM |
| Idle RPM | Not specified |
| Torque | Not specified |
| Torque RPM | Not specified |
| Starter Volts | 12 volts |
The engine’s air cleaner system consists of two paper elements, providing reliable filtration.
The pre-heating system uses a thermostart mechanism, enhancing cold-start capabilities.
The rated RPM for this engine is 2200.
The starter system requires 12 volts.
Transmission Details
The AGCO DT220A is equipped with a PowerMaxx CVT transmission. This transmission stands out for its continuously variable capabilities, allowing smooth and seamless operation without the need for manual gear changes.
The CVT type offers infinite two-range gears for both forward and reverse movements. This design enhances operational efficiency and provides flexibility during various agricultural tasks.
Here is a concise summary of the transmission specifications:
| Brand | Type | Gears | Clutch |
|---|---|---|---|
| PowerMaxx | Continuously Variable (CVT) | Infinite (two-range) | Not applicable |
The power shuttle feature enables smooth transition between forward and reverse, making it ideal for tasks that require frequent direction changes.
The 8-speed powershift transmission ensures that the tractor can handle heavy-duty tasks with ease. This robust design, combined with the continuous variability, allows for precise control and adaptability in different farming conditions.
Furthermore, the hydrostatic power steering and hydraulic brakes provide enhanced maneuverability and safety, complementing the advanced transmission system.
Power and Tractor Test Details
The AGCO DT220A tractor is part of the DT-A Series produced between 2005 and 2008 and underwent OCED Tractor Test 2323 from May to July 2005.
PTO Performance
- Max Power: 249.3 hp (185.9 kW)
- Fuel Use: 14.2 gal/hour (53.7 l/hour)
- Power at Rated Engine Speed: 228.5 hp (170.4 kW)
- Power at Rated PTO Speed: 247.9 hp (184.9 kW)
Drawbar Performance
- Max Power: 200.5 hp (149.5 kW)
- Fuel Use: 14.5 gal/hour (54.9 l/hour)
- Max Pull: 27,190 lbs (12,333 kg) at 10.3 KPH
Test Summary
- Date: May 2005 – July 2005
- Test Type: Diesel CVT 4WD
- Link: OCED Tractor Test 2323 file
Mechanical Details
The AGCO DT220A offers robust mechanical features suitable for demanding agricultural tasks. This tractor model highlights its strong chassis and efficient steering, making it reliable for various field applications.
Chassis and Steering
| Attribute | Details |
|---|---|
| Chassis Type | 4×4 MFWD 4WD |
| Steering Type | Hydrostatic power |
| Brakes Type | Hydraulic wet disc |
| Cab Type | Standard with optional pneumatic suspension |
| Heating/Air Conditioning | Yes |
Hydraulic System
The hydraulic system of the AGCO DT220A is designed to provide excellent control and performance. It features a closed center pressure flow compensated (PFC) system.
| Attribute | Details |
|---|---|
| Type | Closed center pressure flow compensated (PFC) |
| Pressure | 2900 psi (200.0 bar) |
| Number of Valves | 4 or 5 |
| Pump Flow | 39 gpm (147.6 lpm) |
| SCV Flow | Additional data needed |
Electrical Information
The electrical system is robust, providing reliable performance required in agricultural environments.
| Attribute | Details |
|---|---|
| Ground Type | Negative |
| Charging System | Alternator |
| Charging Amps | Additional data needed |
| Number of Batteries | 2 |
| Battery CCA | Additional data needed |
| Battery Volts | 12 |
Dimensions
The AGCO DT220A boasts impressive dimensions designed for robust performance.
General Dimensions
| Specification | Inches | Centimeters |
|---|---|---|
| Wheelbase | 121 | 307 |
| Length | 206 | 523 |
| Height | 122 | 309 |
Weight
| Type | Pounds | Kilograms |
|---|---|---|
| Shipping Weight | 19,951 | 9,049 |
| Ballasted Weight | Data unavailable | Data unavailable |
| Max Capacity Weight | Data unavailable | Data unavailable |
Height
| Measurement | Inches | Centimeters |
|---|---|---|
| Hood Height | Data unavailable | Data unavailable |
| Cab Height | 122 | 309 |
| Exhaust Height | Data unavailable | Data unavailable |
Variants and Models
The AGCO DT220A, part of the DT-A series, had several variants to cater to different agricultural needs. One notable variant is the Massey Ferguson 8470.
| Variant | Engine (hp) | PTO (hp) |
|---|---|---|
| Massey Ferguson 8470 | 260 | 220 |
Models in the DT-A Series:
- AGCO DT200A
- AGCO DT220A
- AGCO DT240A
Each model in the DT-A series was designed with specific capabilities. The DT220A, for instance, was manufactured between 2005 and 2008 in Beauvais, France.
Specifications of the DT220A include:
- Engine: 8.4 L, six-cylinder diesel
- Transmission: Continuously variable with infinite forward and reverse gears
Dimensions:
- Length: 17.2 ft
- Height to top of cab: 10.31 ft
- Wheelbase: 10.09 ft
Serial numbers help in identifying the production year and authenticity of each model.
The DT220A is often compared to similar models like the Deutz-Fahr Agrotron 106, particularly for its versatility in row-crop agricultural tasks.
AGCO DT220A Reviews
The AGCO DT220A row-crop tractor, known for its robust construction and advanced features, has garnered a mix of owner feedback. Reviews often highlight aspects such as reliability, specific issues, and maintenance practices essential for optimal performance.
Owner Reviews
Owners of the AGCO DT220A often praise its 8.4 L six-cylinder diesel engine, which provides substantial power for a variety of agricultural tasks.
Users report that the tractor performs exceptionally well in both heavy fieldwork and lighter tasks like baling and tillage.
Feedback indicates a positive reception toward the continuously variable transmission (CVT), enabling smooth transitions between gears.
Additionally, the cab is positively reviewed for its comfort, with optional pneumatic suspension and compatibility with advanced systems like Datatronics 3 and Fieldstar.
However, there are complaints about higher maintenance costs due to the complexity of the tractor’s systems.
Availability of parts and efficient service support are highlighted as critical factors for sustained performance.
Common Issues and Troubleshooting
Common problems with the AGCO DT220A include wear and tear on the air bags in the cab’s suspension system. Over time, these components can deteriorate, affecting ride comfort.
Owners have also reported occasional issues with the CVT, which may require attention and maintenance for optimal functioning.
Early models of the DT series, particularly those with powershift transmissions, showed more significant issues compared to later models.
Regular servicing and maintenance checks, focusing on these specific areas, are crucial to prevent costly repairs.
Here is a brief checklist for troubleshooting common issues:
- Cab Air Bags: Inspect and replace if signs of deterioration are evident.
- Continuously Variable Transmission: Regularly check for transmission fluid levels and possible leaks.
- General Maintenance: Routine servicing to ensure all systems are functioning correctly and to address minor issues before they escalate.
Frequently Asked Questions
The AGCO DT220A tractor comes with various features and capabilities that make it suitable for large and demanding agricultural tasks. It is important to understand its pricing, implement compatibility, and how it compares to similar models.
What is the price range for a used AGCO DT220A?
A used AGCO DT220A can typically be found in the price range of $50,000 to $80,000. Prices can vary depending on factors such as age, hours of use, and overall condition. Buyers should also consider any additional features or upgrades that may affect the price.
What implement compatibility can be expected with the AGCO DT220A?
The AGCO DT220A offers good compatibility with a wide range of agricultural implements. It supports Datatronics 3, Fieldstar, and Auto-Guide systems. Additionally, it has a powerful 260 hp engine and 4WD chassis, making it suitable for various heavy-duty tasks and attachments.
How does the AGCO DT220A compare in performance to other models like the DT200A or DT225B?
The AGCO DT220A stands out with its 260 hp engine and infinite variable transmission. The DT200A has slightly lower power at around 200 hp.
Meanwhile, the DT225B offers similar performance but may have different features and specifications. Each model suits specific needs, but the DT220A is known for its robust performance and versatility.
