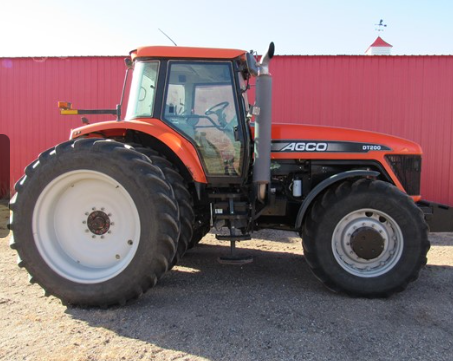

The AGCO DT200 is a notable tractor that draws attention for its powerful performance and engineering. Manufactured by AGCO in Beauvais, France, from 2002 to 2004, it remains a popular choice for farmers and agricultural professionals. Equipped with a robust Cummins 8.3L 6-cylinder diesel engine, the DT200 offers reliable and efficient power, making it suitable for a variety of heavy-duty tasks.
One standout feature of the AGCO DT200 is its advanced transmission system. With an 18-speed full power shift transmission, operators can easily adjust to the most challenging terrains and job requirements. This flexibility ensures that the tractor performs smoothly under various conditions, enhancing productivity and reducing downtime.
In the market for used tractors, the AGCO DT200 still holds its value, often listed in excellent condition with minimal required repairs. This longevity speaks to the tractor’s durable build and quality components. For those seeking a trustworthy and high-performing tractor, the AGCO DT200 is certainly worth considering.
History of the AGCO DT200 Model
The AGCO DT200 is a row-crop tractor that was manufactured by AGCO between 2002 and 2004. This model was built in Beauvais, France, and in the United States, especially created to serve large farming and agricultural needs.
The DT200 is part of the AGCO DT Series and stands out due to its powerful engine. It is equipped with a Cummins C8.3L six-cylinder turbocharged aftercooled diesel engine, which delivers up to 235 horsepower. This substantial power is key for handling demanding farm operations and tasks.
Design and Features:
- Engine: Cummins C8.3L 6-cyl turbocharged aftercooled diesel
- Horsepower: 235 hp
- Fuel Tank Capacity: 120 gallons (454.2 L)
- Transmission: 18-speed full power shift
The dimensions and weight of the DT200 are notable. With a length of 203 inches, a width of 98.2 inches, and a height of 121 inches, it has a sturdy build. The tractor also maintains a wheelbase of 121 inches for stable operation.
Key Specifications:
| Specification | Value |
|---|---|
| Weight | 19,700 lbs (8935 kg) |
| Length | 203 inches (515 cm) |
| Width | 98.2 inches (249 cm) |
| Height | 121 inches (307 cm) |
| Wheelbase | 121 inches (307 cm) |
The DT200 was particularly appreciated for its versatility and durability in agricultural settings. Its advanced engine and robust construction allowed it to handle heavy fieldwork with ease, making it a dependable choice for many farmers during its production years.
Origins of the AGCO Brand
AGCO, or Allis-Gleaner Corporation, was established in 1990. The company was formed from the assets of Deutz-Allis, which itself was a descendant of Allis-Chalmers.
Allis-Chalmers had been a major player in the agricultural equipment industry for much of the 20th century.
AGCO’s headquarters is located in Duluth, Georgia, but they also have significant operations in Beauvais, France.
The Beauvais site is noteworthy for its production of Massey Ferguson tractors, a brand AGCO acquired in 1994.
Over the years, AGCO acquired several other well-known brands, including Fendt, Valtra, and Challenger, expanding its global footprint.
The strategy of acquiring established brands has allowed AGCO to offer a comprehensive range of agricultural equipment, making it a leading name in the industry.
AGCO’s dedication to innovation and quality has contributed to its strong reputation among farmers and agricultural professionals worldwide.
The company’s focus on advanced technology and customer satisfaction ensures that AGCO remains a key player in the agricultural sector.
Engine Details
The AGCO DT200 uses the Cummins C8.3 engine, known for its reliability and performance. It is a turbocharged and aftercooled diesel engine, offering six cylinders and efficient liquid cooling.
Key Specifications:
| Engine Name | Cummins C8.3 |
|---|---|
| Engine Type | Turbocharged aftercooled diesel |
| Cylinders | 6 |
| Displacement | 505 cu in (8.3 L) |
| Bore/Stroke | 4.488 x 5.315 in (114 x 135 mm) |
| Power | 235 hp (175.2 kW) |
| Fuel Tank Capacity | — |
| Fuel System | — |
| Air Cleaner | Two paper elements |
| Pre-Heating | — |
| Compression Ratio | — |
| Rated RPM | 2200 rpm |
| Idle RPM | — |
| Torque | 716 lb-ft (970.9 Nm) |
| Torque RPM | 1300 rpm |
| Starter Volts | 12 volts |
The displacement of this engine is 505 cubic inches (8.3 liters), ensuring ample power and torque for heavy farm tasks.
With a rated RPM of 2200, the DT200 delivers a strong and consistent performance. The engine produces a maximum torque of 716 lb-ft (970.9 Nm) at 1300 RPM, providing excellent pulling power.
The bore and stroke measurements are 4.488 inches (114 mm) and 5.315 inches (135 mm) respectively, reflecting the engine’s design for durability and power.
Ensuring clean operation, the DT200 is equipped with two paper air cleaner elements, which aid in protecting the engine from particulates.
Overall, the AGCO DT200’s engine provides a blend of power, efficiency, and reliability, making it suitable for a variety of agriculture applications.
Transmission Details
The AGCO DT200 features a robust and reliable transmission system designed to handle demanding agricultural tasks.
Transmission Specifications
The transmission is a full power shift type, allowing for smooth and efficient gear changes without manual interruption. This transmission system offers 18 forward gears and 6 reverse gears.
Clutch System
The AGCO DT200 is equipped with an electro-hydraulic wet disc clutch. This type of clutch provides better durability and performance in various operating conditions. The electro-hydraulic system allows for seamless engagement and disengagement, improving the tractor’s overall efficiency and ease of use.
Transmission Overview
| Brand | Type | Forward Gears | Reverse Gears | Clutch |
|---|---|---|---|---|
| AGCO | Full Power Shift | 18 | 6 | Electro-Hydraulic Wet Disc |
This combination of features ensures the AGCO DT200 can maintain a high level of productivity in large-scale farming operations.
Power and Tractor Test Details
The AGCO DT200 is a robust machine known for its power and efficiency. It has proven itself in various tests and is highly regarded in the realm of large-scale farming.
Engine and Power
The AGCO DT200 is powered by a 7.4-liter, 6-cylinder diesel engine. It delivers a maximum power output of 225 hp (168 kW). This makes it well-suited for demanding agricultural tasks.
PTO Performance
- Max Power: 225.28 hp (168.0 kW)
- Fuel Use: 13.5 gallons/hour (51.1 liters/hour)
- Power at Rated Engine Speed: 204.33 hp (152.4 kW)
- Fuel Use: 13.0 gallons/hour (49.2 liters/hour)
- Power at Rated PTO Speed: 221.42 hp (165.1 kW)
- Fuel Use: 13.4 gallons/hour (50.7 liters/hour)
Drawbar Performance
- Max Power: 177.14 hp (132.1 kW)
- Fuel Use: 13.0 gallons/hour (49.2 liters/hour)
- Gear Used: 11 for power test
Pulling Performance
- Max Pull: 24,468 lbs (11,098 kg)
- Gear Used: 4 for pull test
Tractor Test Summary
A comprehensive test was conducted from May 7 to May 18, 2001. This test assessed various aspects of the AGCO DT200, highlighting its capabilities and efficiency.
The AGCO DT200 combines impressive power with good fuel efficiency, making it a reliable choice for heavy-duty agricultural operations.
Mechanical Details
The AGCO DT200 is a robust and versatile row-crop tractor built for demanding farming tasks. This tractor features four-wheel drive and hydrostatic power steering. It is equipped with hydraulic wet disc brakes, ensuring reliable stopping power. The tractor comes standard with a cab that offers both heating and air conditioning for comfort in various weather conditions.
Chassis and Steering
| Feature | Specification |
|---|---|
| Chassis Type | 4×4 MFWD 4WD |
| Steering Type | Hydrostatic Power |
| Brakes Type | Hydraulic Wet Disc |
| Cab Type | Standard |
| Heating | Yes |
| Air Conditioning | Yes |
Hydraulics
The hydraulic system of the AGCO DT200 is a closed center pressure flow compensated (PFC) type. The system operates at a pressure of 2900 psi (200 bar). The tractor offers 4 valves, with a pump flow of 29 gpm (109.8 lpm) and an optional increased flow of 39 gpm (147.6 lpm).
| Feature | Specification |
|---|---|
| Type | Closed Center PFC |
| Pressure | 2900 psi / 200 bar |
| Valves | 4 |
| Pump Flow | 29 gpm / 109.8 lpm |
| Optional Pump Flow | 39 gpm / 147.6 lpm |
| SCV Flow | Not specified |
Electrical System
The tractor has a negative ground electrical system powered by an alternator. It uses a 12-volt battery system.
| Feature | Specification |
|---|---|
| Ground Type | Negative |
| Charging System | Alternator |
| Battery Volts | 12 |
| Number of Batteries | Not specified |
| Battery CCA | Not specified |
This detailed setup ensures that the AGCO DT200 is equipped to handle a variety of agricultural tasks with ease and efficiency.
Dimensions
The AGCO DT200 is a robust tractor designed for various agricultural tasks.
Wheelbase
- 121 inches (307 cm)
Length
- 203 inches (515 cm)
Width
- 98.2 inches (249 cm)
Height
- Hood Height: 121 inches (307 cm)
- Cab Height: Not specified
- Exhaust Height: Not specified
Weight
- Shipping Weight: 19,700 lbs (8,935 kg)
- Ballasted Weight: Information not provided
- Max Capacity Weight: Information not provided
Tires (for AGCO DT200)
- Front Tire Size: Not specified
- Rear Tire Size: Not specified
Despite these missing details, the AGCO DT200’s reliable structure ensures excellent performance in the field. Its dimensions make it a suitable choice for demanding agricultural operations.
Variants and Models
The AGCO DT200 is part of AGCO’s DT series, known for its high performance in agricultural applications. The DT200 is equipped with a Cummins C8.3 engine, which is an 8.3-liter six-cylinder turbocharged diesel engine.
Key Models
- DT200: This model delivers around 200 horsepower at the PTO and is renowned for its reliable performance in fieldwork. It uses advanced hydraulics and features a spacious cabin for operator comfort.
- DT200A: An updated version introduced in 2017. The DT200A offers several technological improvements over the DT200, including increased power output and more advanced features for enhanced productivity.
Differences in Models
| Model | Engine Power | Technology | Production Year |
|---|---|---|---|
| DT200 | 200 HP | Standard | Early Models |
| DT200A | 235 HP | Advanced | 2017 Onwards |
AGCO DT200 Reviews
The AGCO DT200 has garnered a diverse range of feedback from users, highlighting both its strengths and areas needing improvement. This section will explore what owners have to say about their experiences and discuss some common issues along with tips for troubleshooting.
Owner Reviews
Owners often praise the AGCO DT200 for its reliable performance and durability. Many appreciate its Cummins C8.3 engine known for its robust power output, ideal for heavy-duty tasks like baling and light tillage. The 540 PTO (Power Take-Off) feature is another advantage as it allows the tractor to run smaller equipment efficiently.
Users generally value the tractor’s ease of handling and fuel efficiency. Some have pointed out the comfort of the driver’s seat, though opinions are mixed. While some find it adequate, others describe it as uncomfortable, resembling “a piece of plywood.” Another minor complaint is the cup holder design, which many feel could be more functional.
Routine maintenance is reportedly straightforward, with accessible components contributing to an overall sense of ease in upkeep.
Common Issues and Troubleshooting
Despite its strengths, the AGCO DT200 isn’t without its issues. One common problem mentioned is with the hydraulic remotes. Owners have found that while one lever works perfectly, others may stop functioning. It is suggested to check the hydraulic fluid levels and filter conditions regularly to avoid these issues.
Another area of concern is the variable transmission. Some users mention occasional troubles with its performance. For these, it’s recommended to review the operator’s manual for troubleshooting steps and to ensure the system is not overdue for maintenance.
For more specific and persistent concerns, many owners stress the importance of regular servicing and consulting with AGCO support to solve more complex problems. Utilizing manufacturer support usually leads to effective troubleshooting and longer-lasting solutions.
Frequently Asked Questions
The AGCO DT200 is a high-horsepower, reliable tractor often used for various agricultural tasks. Users have questions about its specs, common problems, performance, pricing, comparisons, and engine details.
What are common issues reported with the AGCO DT200?
Some users have reported hydraulic problems, particularly with the valves that control implements. These issues might require valve replacements to fix. Maintaining the tractor’s hydraulic system is vital for preventing such issues.
How does the AGCO DT200 perform in user reviews?
Users generally appreciate the AGCO DT200 for its reliability, powerful engine, and comfort. It is well-regarded for both heavy-duty tasks and lighter operations. Some users favor its versatile PTO and overall ease of operation.
What is the price range for a used AGCO DT200 tractor?
A used AGCO DT200 tractor, depending on its condition, hours of usage, and location, typically ranges between $40,000 and $70,000. Factors like added equipment and maintenance history can influence the price.
